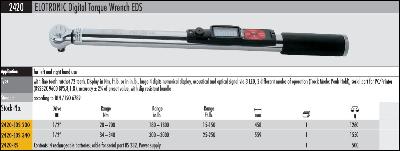

The new electronic torque wrench ELOTRONIC 2420
Heavy duty and very solid construction, attractive design and easy handling
are the main attributes of the new electronic torque wrench ELOTRONIC
2420. It has a serial port to be connected to a PC or printer for documentation
of the achieved torque values. Easy input of the target torque values via 4
button foil keys next to the big LCD-display.
Three LED units report the result of the tightening process:
just below the target value (yellow), within the tolerance range (green) and
above the tolerance range (red). A constant acoustical signal appears when
the achieved torque value is within the tolerance range. In case of overload
the signal will be interrupted as a warning signal.
It is possible with the reversible ratchet to use the torque wrench for left and
right hand use.
Available units: Nm, ft.lb., in.lb.
The 4 mignon batteries allow operations for approx. 100 hrs! The optional
cable for the serial port (ELORA-No. 2420-RS) includes the cable, 4
rechargeable batteries as well as a power supply.
The information which can be transferred to the PC respect. printer are the
following:
• real (actual) torque value
• selected unit
• target value
• the selected tolerance range
• the result of real to target value (Under/Pass/Over)
|
|
|
 |
|
|
Application
for left and right hand use
Type
with fine tooth ratchet 72 teeth, Display in Nm, ft.lb or in in.lb, large 4 digits
numerical display, acoustical and optical signal via 3 LED,
2 different modes of operation (Track-Mode and Peak Hold Mode), serial port for
PC/Printer (RS232C 9600 BPS, 8,1,N).
Accuracy +/- 2%, with slip resistant handle
|
|
|
ELORA-No. Drive Nm ft.lb. in.lb. mm Price
2420-EDS 200 1/2“ 20-200 15-150 180-1800 458 $ 1,111.79
2420-EDS 340 1/2“ 34-340 25-250 300-3000 559 $ 1172.77
2420-RS $ 301.60
contents: 4 rechargeable batteries, cable for serial port RS232, Power supply
|
|
|
